Professional Fabricators of Steuben County, Inc. (ProFab) is a steel fabricator who primarily serves construction, manufacturing and industrial businesses throughout Northeast Indiana, Western Ohio and Southern Michigan. Professional Fabricators of Steuben County also provides in-house licensed and insured engineering services along with professional CAD design and drafting.

ProFab is a fabrication shop, which performs at the highest quality standards of our industry. ProFab’s structural steel fabrications encompass the entire range which includes, but not limited to, columns, beams, joists, girders, and trusses.

Our engineering department allows superior quality and response time:

  • Licensed P.E. on staff
  • Multiple C.A.D. stations

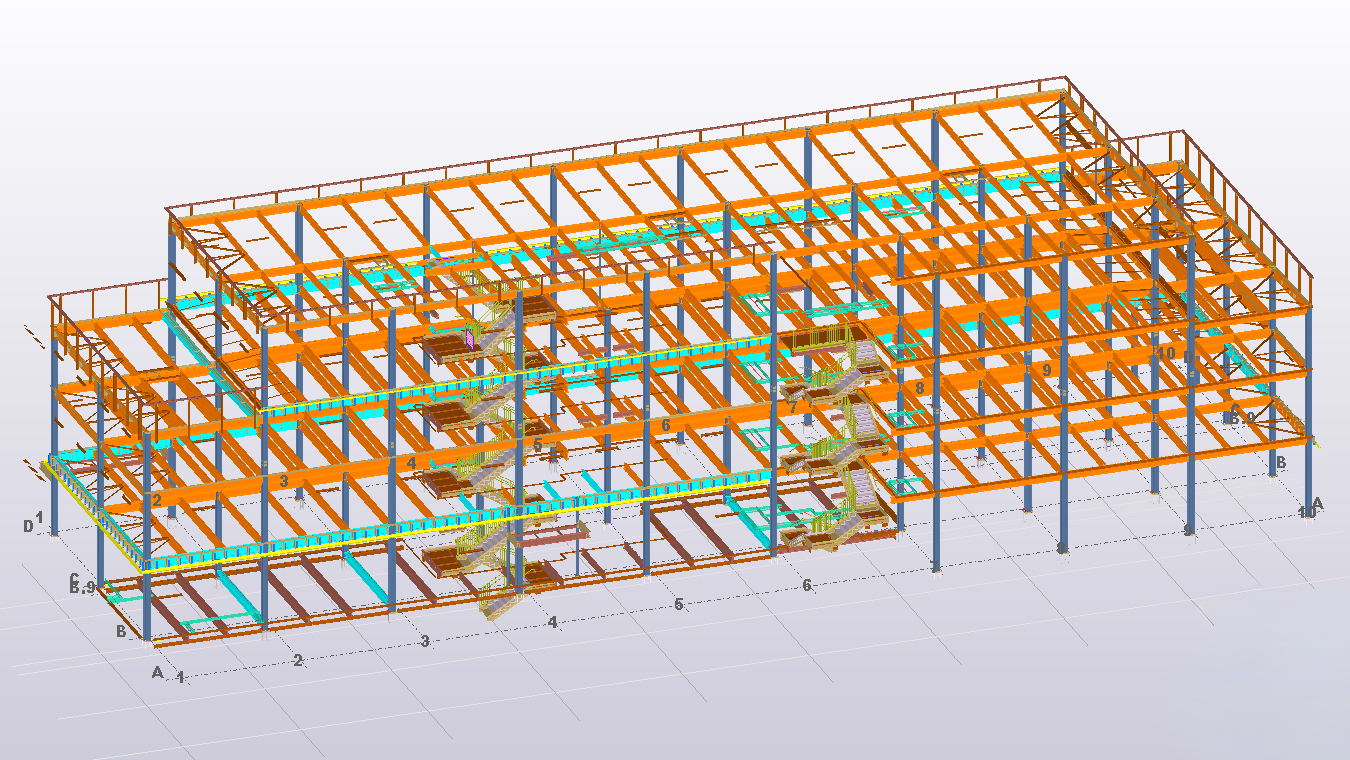

  • 3D modeling – BIM

ProFab’s capabilities rival the largest fabrication shops and we’re able to handle most customer requirements.

Our Capabilities

ICE’s modernized campus is ready to meet the rigors of your metal fabrication project(s). We sit on 4 acres in Angola, Indiana’s industrial park. The ICE shop is 64,000 sq. ft. in size and features, but is not limited to, the following fab equipment:

If you would like information on Professional Fabricators of Steuben County, please fill out the following form or call us (260-665-2123) directly. We would love to hear from you!

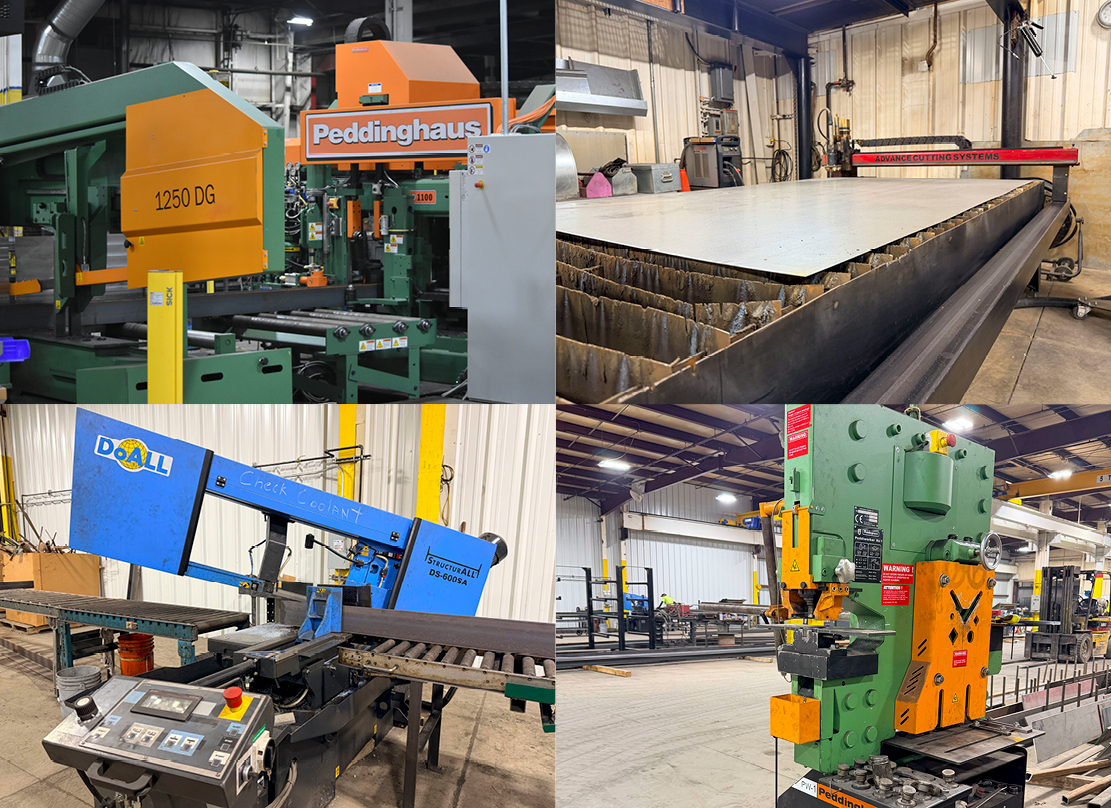

Peddinghaus CNC Beam Drill Line (In Use NOW at ProFab!)

Sheet Metal Capabilities:

  • Engel TDF V16, 16 station TDF rollformer, (18 to 26 gauge)
  • Lion 1836 0 pneumatic closed throat cleat bender, (7/16 fixed, 180 degree hem)
  • Roto Die 10 hydraulic bender, (10′ x max 5/8″ x 54″)
  • Pexto 165BH12 press brake, 165 ton, 15′ bed
  • Tinknocker 1660 duct beader, (5′ x 16 gauge)
  • 4′ 16 gauge box + pan
  • 10′ 16 gauge leaf brake
  • Americor 1025 shear, (1/4″ plate, 10′ max)
  • S + Drive duct (up to 36″ drives, 5′ joints)
  • TDF duct (up to 16 gauge, 5′ joints)
  • Advance Cutting Systems CNC plasma arc table with Hypertherm 105, (60″ x 120″, 3/4″ capacity)
  • TEKLA / AutoCad / REVIT / Trimble FAB HVAC software

Metal Fabrication Capabilities:

  • Peddinghaus Advantage 2 CNC drill line, (3 drilling axis each with 5 stations)
    • Beam – (2″ to 44″ wide, 3/4″ to 18″ tall)
    • Tube – (2″ to 24″ wide, 2″ to 18″ tall)
    • Channel – (2″ to 44″ wide, 3/4″ to 18″ tall)
    • Angle – (2″ to 12″ wide, 3/4″ to 18″ tall, 1/4″ to 1 1/4″ thick)
    • Flat – (2″ to 44″ wide, 3/4″ to 4″ thick)
    • Multi axis scribing
  • Peddinghaus DG 1250 band saw
  • Peddinghaus Pediworker number 1, (100 ton ironworker)
  • Geka Hydracrop 50A, (50 ton ironworker)
  • Wilton VTF8 2 vertical band saw, (18″ x 24″)
  • Hyd Mech S 20 band saw, (16″ x 12″)
  • JET 16″ adjustable drill press
  • DoALL StructurALL DS 600SA dual miter semi-automatic band saw, 18″ x 24″
  • Victor UltraCut 300XT plasma cutter
  • Hypertherm 65 Sync plasma cutter
  • Certified welders, Stick / MIG / TIG / Plastic
Overhead Cranes:

  • 3 ton capacity with 18′ under the hook, (sheet metal bay)
  • 10 ton capacity with 18′ under the hook, (heavy fabrication bay)
  • 5 ton capacity with 18′ under the hook, (medium fabrication bay)
  • 5 ton capacity with 18′ under the hook, (light fabrication bay)
  • 5 ton capacity with 14′ under the hook, (paint bay)

Painting Capabilities:

  • 120′ x 50′ ventilated paint bay
  • Airless sprayers

Forklifts & Lifts:

  • 6,000 lbs Combi CB multidirectional, 15′ forklift
  • 28,000 lbs Towmotor, 10′ forklift
  • 8,000 lbs CAT, 15′ forklift
  • (2) 6,000 lbs Daewoo G30S 2, 15′ forklift
  • 6,000 lbs Doosan G30E 7, 15′ forklift
  • (2) JLG 340AJ all terrain boom lifts, 34′ reach
  • (2) JLG Skytrack 10054 telehandlers, 10,000 lbs
  • (2) CAT TH255 C telehandlers, 5,000 lbs
  • *NEW* Toyota 50 8FG80U forklift, 17,500 lbs

Fleet:

  • (2) 26′ stake beds, 26,000 lbs rated
  • 16′ flatbed, 22,000 lbs rated

Main Shop:

  • 67,000 sq ft production floor inside an 86,000 sq ft building
  • Secured 2 acre laydown yard on a 4 acre property

Annex:

  • 10,000 sq ft storage building
  • Secured 2 acre laydown yard

ProFab offers a wide spectrum of complete industrial fabrication solutions in steel, aluminum and stainless steel. Our welding capabilities include mig, and tig.

  • Building integrated management BIM capable

  • We are able to quote complete metals packages

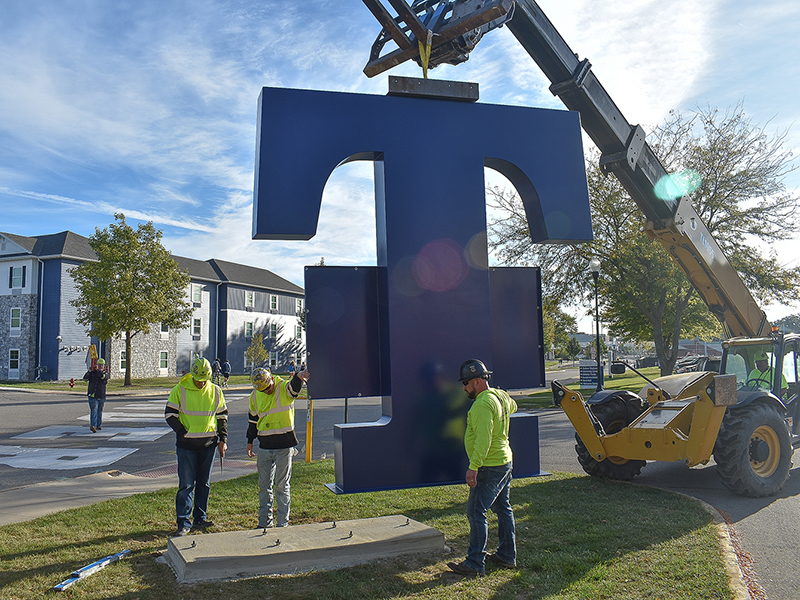

Trine T - 800x600

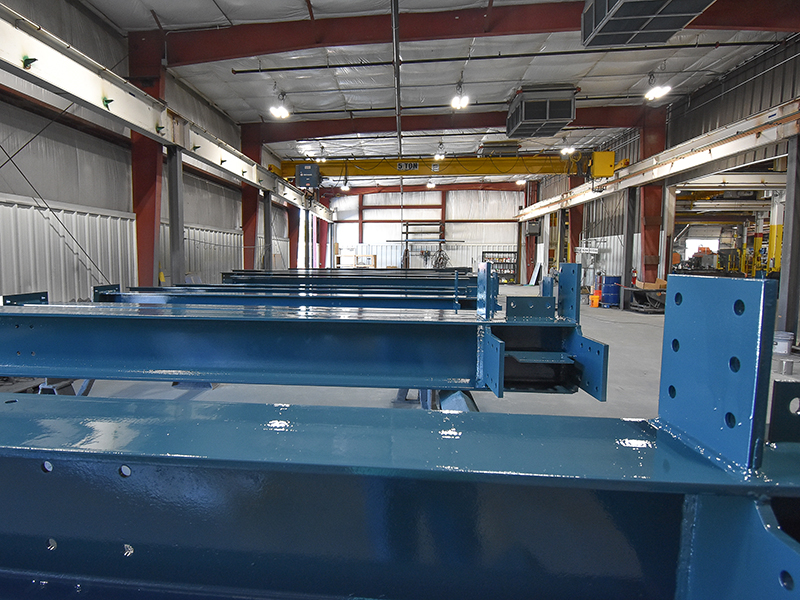

ICE Color Steel - 800x600

Steel Projects (Bldg. Skeletons, Stairs, Rails, Signs, etc.)
